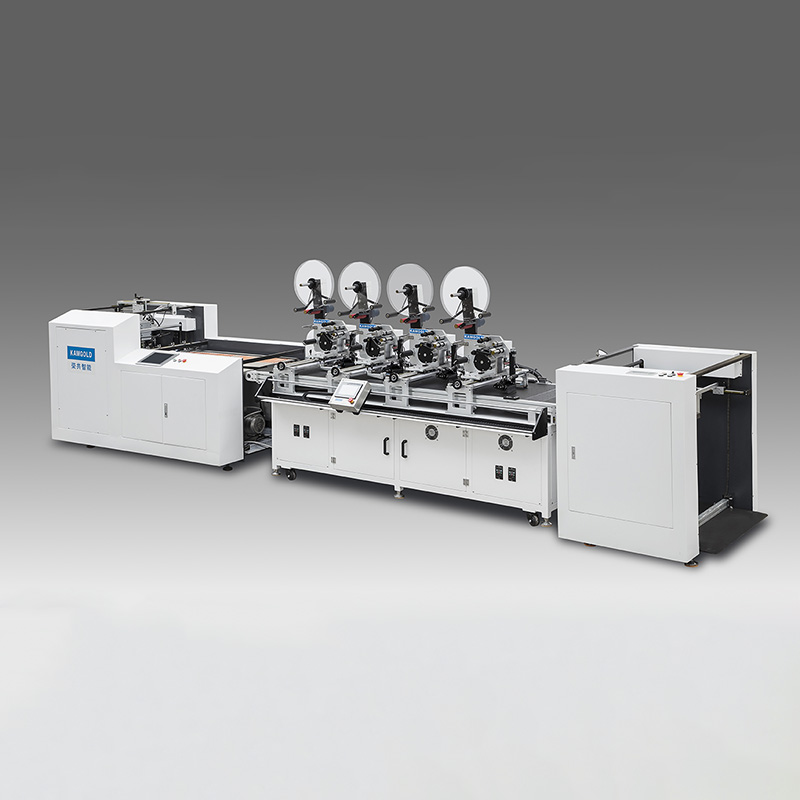

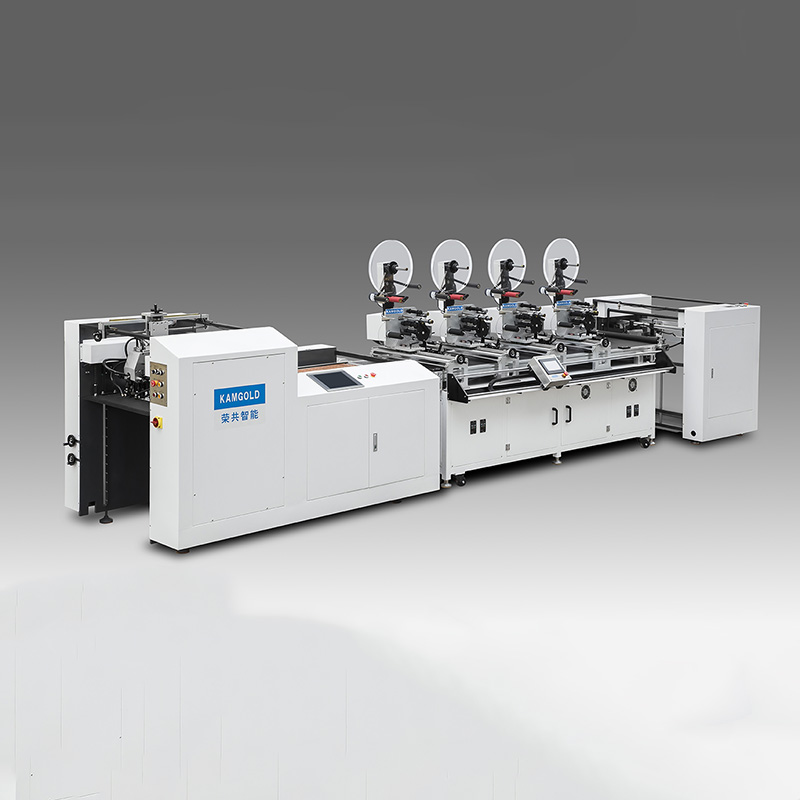

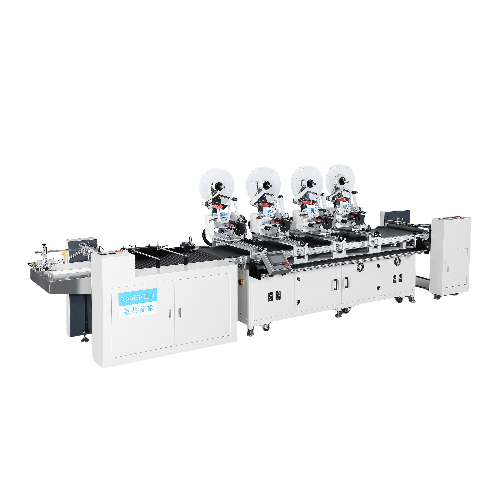

GYJ-620 Automatic Four Headers RFID Labeling Machine

Applicable Scope:
GYJ-620 Automatic multiple headers labelling machine specially designed for RFID inlay type tags, instead of manually labelling, machine head could increase or decrease according to customer’s requirements.There are two feeding methods available: front suction feeder and printing machine rear feeder. It is fast and location accuracy. One machine can replace dozens of people, it is the tags sticking label new weapons.
Availability:
Quantity:

Technical Parameters


4 headers

6 headers

Working speed

480-960pcs/min

720-1440pcs/min

Speed of belt

20m-40m/min

Labels size

width:20-100mm; length:10-80mm

Products size

width:100-580mm; length:120-580mm

Paper sheet thickness

0.2mm-1.2mm

Label location precision

±0.5mm

Machine size

6360*1500*1800mm

6960*1500*1800mm

Machine weight

3000KG

3200KG

Voltage

3 phase 380V/50HZ

3 phase 380V/50HZ

Power

15KW

17KW
