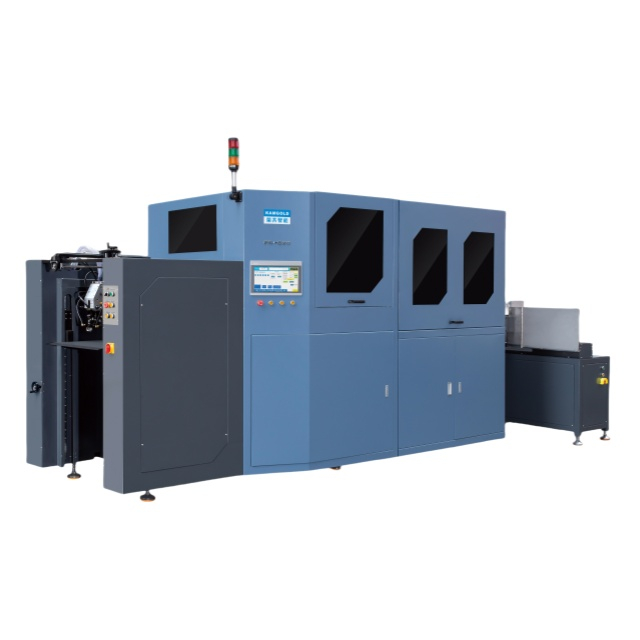

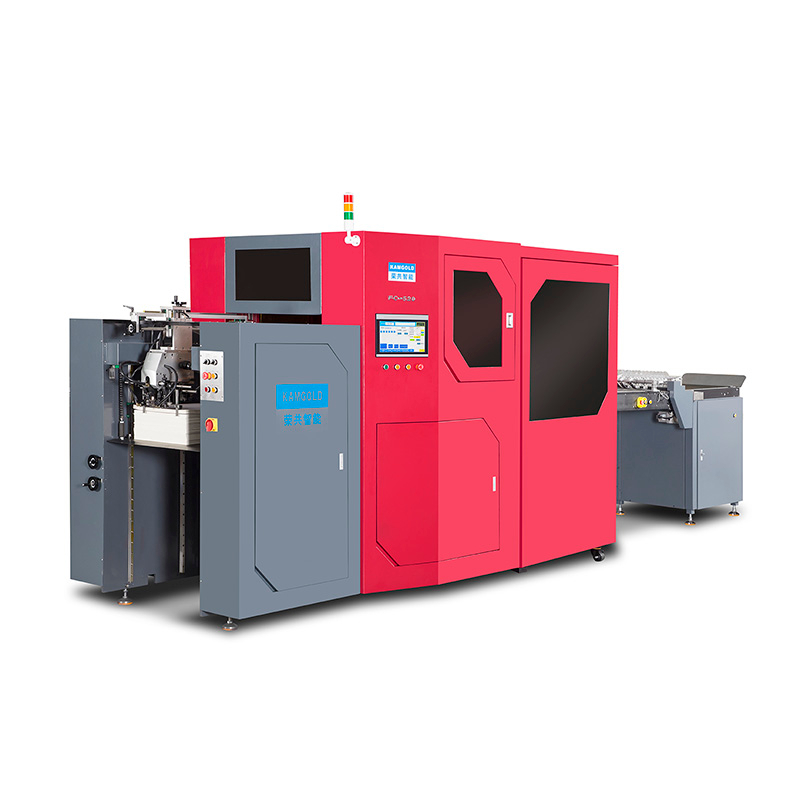

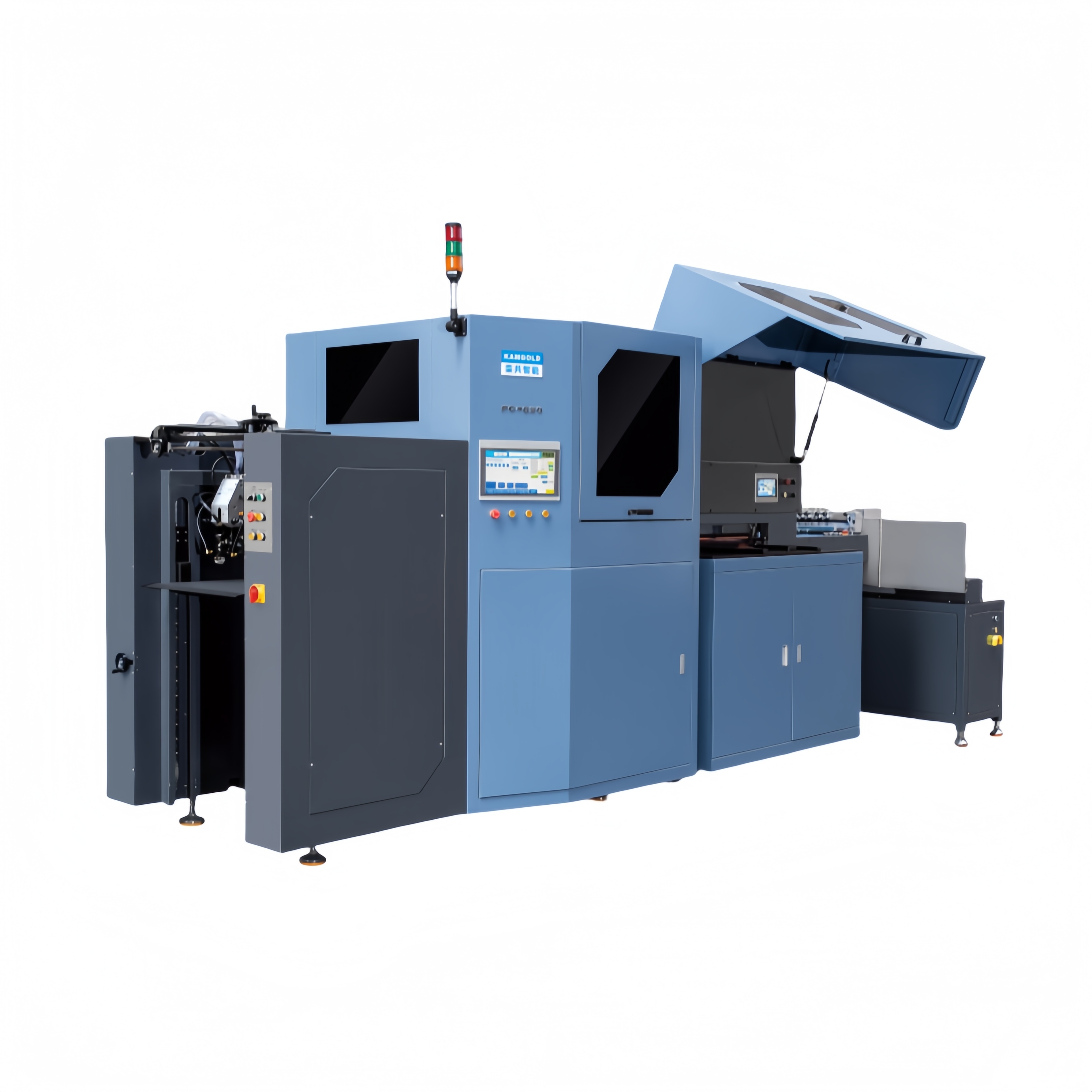

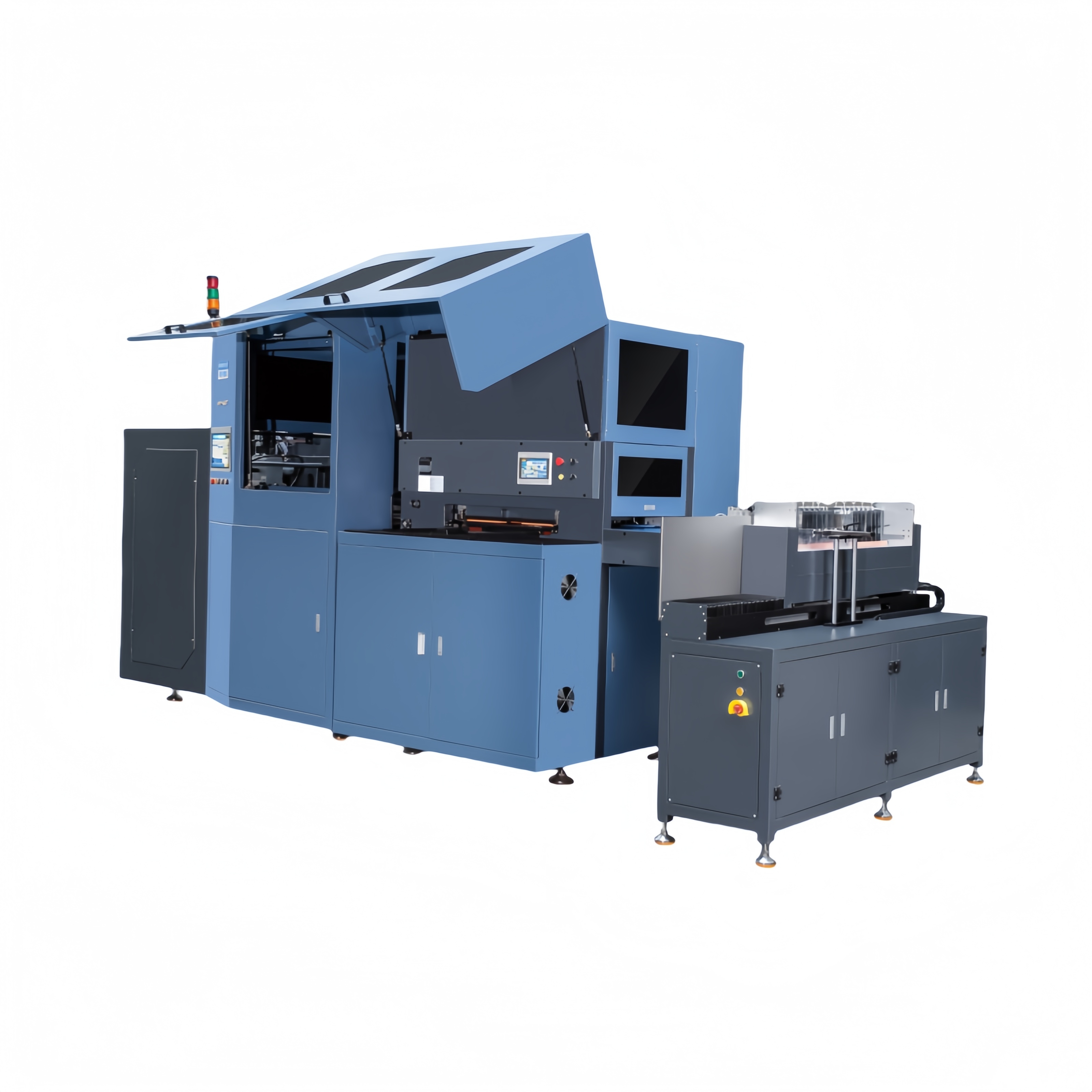

FC-520 Automatic Didital Platen Presss Die Cutting Machine with Waste Discharging

Applicable Scope:
FC-520 is mainly designed for hangtags and paper boxes. Automatic die cutting, waste discharging, hole cleaning and counting by one time. Using electric pull gauge, servo feeding system. The front, rear, left, and right die cutting positions can be adjusted through the touch screen. Short exchange time. Using belt fish scale stacking for material collection, could greatly save manpower and improve work efficiency.
Availability:
Quantity:

Core advantages:

1. Integrated die-cutting and waste discharging, automatic hole and edge waste sorting

2. Die cut products do not require nailing

3. Automatic tracking of digital printing machine printing misalignment

4. Using wooden board knife molds for die-cutting, cheap, convenient, and durable.

5. High speed,maximum speed:5000pcs/h

6. Max thickness:1.2mm

7. Can achieve segmented die-cutting

Technical Parameters


FC-520

FC-800

Max size of sheet:

520mm*620mm

560mm*800mm

Min size of sheet:

300mm*300mm

300mm*300mm

Min size of final product:

32mm*35mm

32mm*35mm

Paper thickness:

0.2mm-1.2mm

0.2mm-1.2mm

Max speed:

5000pcs/h

5000pcs/h

Min gripper of paper edge:

18mm

18mm

Min discharge width:

3mm

3mm

Machine size:

6300mm*1720mm*2100mm

6300mm*1720mm*2100mm

Machine weight:

5600KG

6500KG

Voltage:

3phase 380V

3phase 380V

Power:

20kw

20kw
