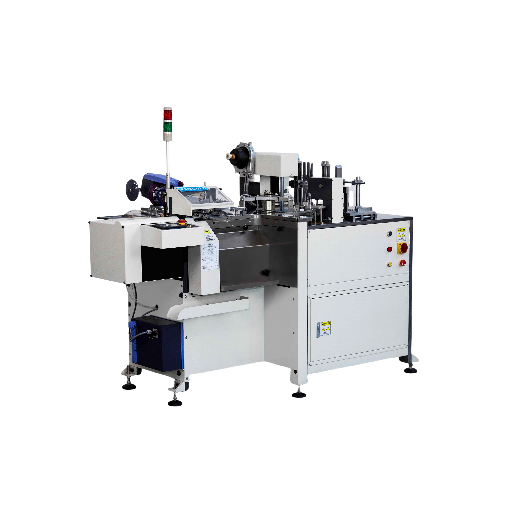

AS-570 Automatic Double Pieces Hangtag Threader Machine with Eyelet

Applicable Scope:
Automatic double pieces hangtag threader machine with eyelet designed for the market's eyelet stringing tag and two tags at the same time stringing products.
Automatic punching, attaching eyelet, matching tags, stringing, knotting, and counting at one time. Its characteristic is to be able to perforate the hole, perforate the eyelet and thread two tags of different sizes at the same time, also for single tag.
Availability:
Quantity:

Technical parameter:


AS-350

AS-570

AS-570H

Speed:

2000-5000pcs/h

2000-5000pcs/h

2000-5000pcs/h

Max size of hangtag:

80*135mm

80*135mm

80*135mm

Min size of hangtag:

22*50mm

22*50mm

22*50mm

Routine size of hole diameter:

4.2mm(Can replace the punch mould)

Diameter of string:

routine:0.3-2.1mm

silk ribbon width:≤4mm

elastic string:0.3-1.5mm

Length of string:

80-180mm ,silk ribbon width≥11.5mm

Length of tail of string:

15-20mm

15-20mm

15-20mm

Thickness of hangtag:

180g-1200g

Hole size of hangtag:

≥3mm

≥3mm

≥3mm

Machine size:

1140mm*1350mm*1360mm

1140mm*1350mm*1360mm

1140mm*1350mm*1360mm

Machine weight:

1000KG

1200KG

1200KG

Voltag:

3phase 380V

3phase 380V

3phase 380V

Power:

1620W

1620W

1620W
