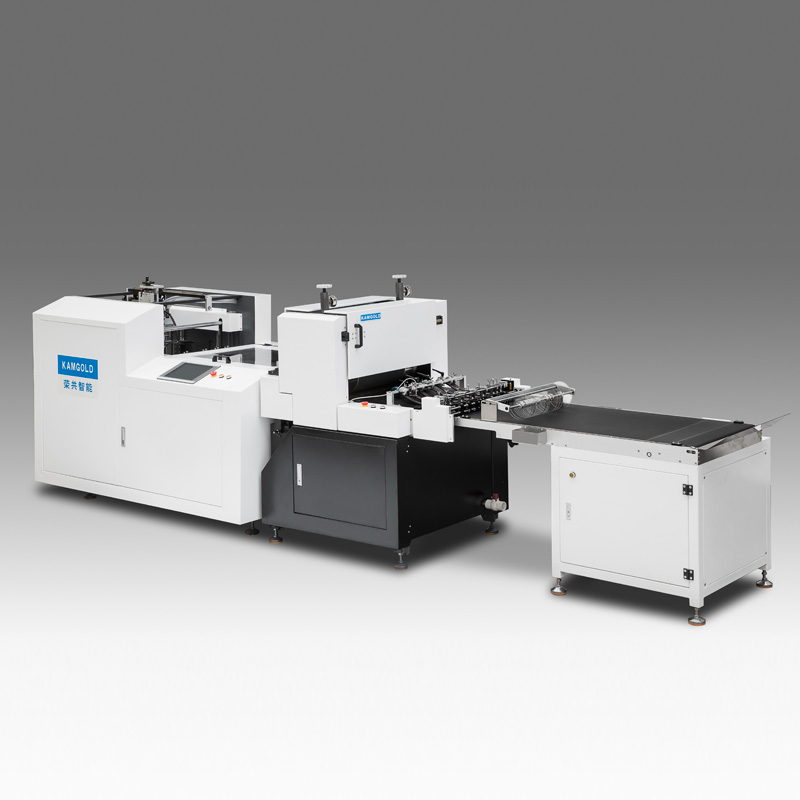

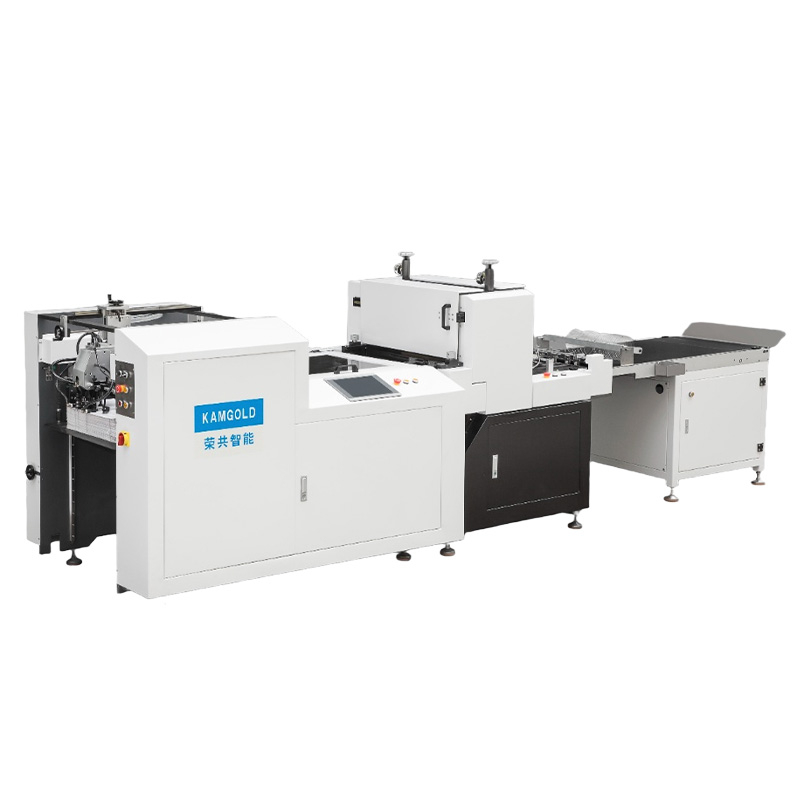

FG-620 Automatic Rotary Die Cutting Machine with Waste Discharging

Applicable:
Automatic die cutting machine with waste discharging is mainly designed for hanging tags and paper box products, with automatic indentation, die-cutting, waste discharge, and hole cleaning completed in onetime. According to the adjustment of the flexible blade, the process requirements for die cutting and kiss cutting can be achieved. Short exchange time, simple operation, and die-cut products do not require nail holes. It is a new and practical die-cutting machine .
Availability:
Quantity:
Inquire Add to Basket

Applicable:

Automatic  die cutting machine with waste discharging is mainly designed for hanging tags and paper box products, with automatic indentation, die-cutting, waste discharge, and hole cleaning completed in onetime. According to the adjustment of the flexible blade, the process requirements for die cutting  and kiss cutting can be achieved. Short exchange time, simple operation, and die-cut products do not require nail holes. It is a new and practical die-cutting machine  .

Technical Parameter：

Max size of flexible blade：620mm*650mm

Min size of flexible blade:160mm*100mm

Max size of sheet：620mm*650mm

Min size of sheet：200mm*200mm

Min size of final product：35mm*35mm

Paper thickness：0.1mm-0.48mm

Max working speed：6000sheet/H

Min paper edge：10-15mm

Min bleeding：3mm

Machine size：4700mm*1750mm*1560mm

Machine weight：2500kg

Power：10kw

Voltage：3phase380V 50Hz
