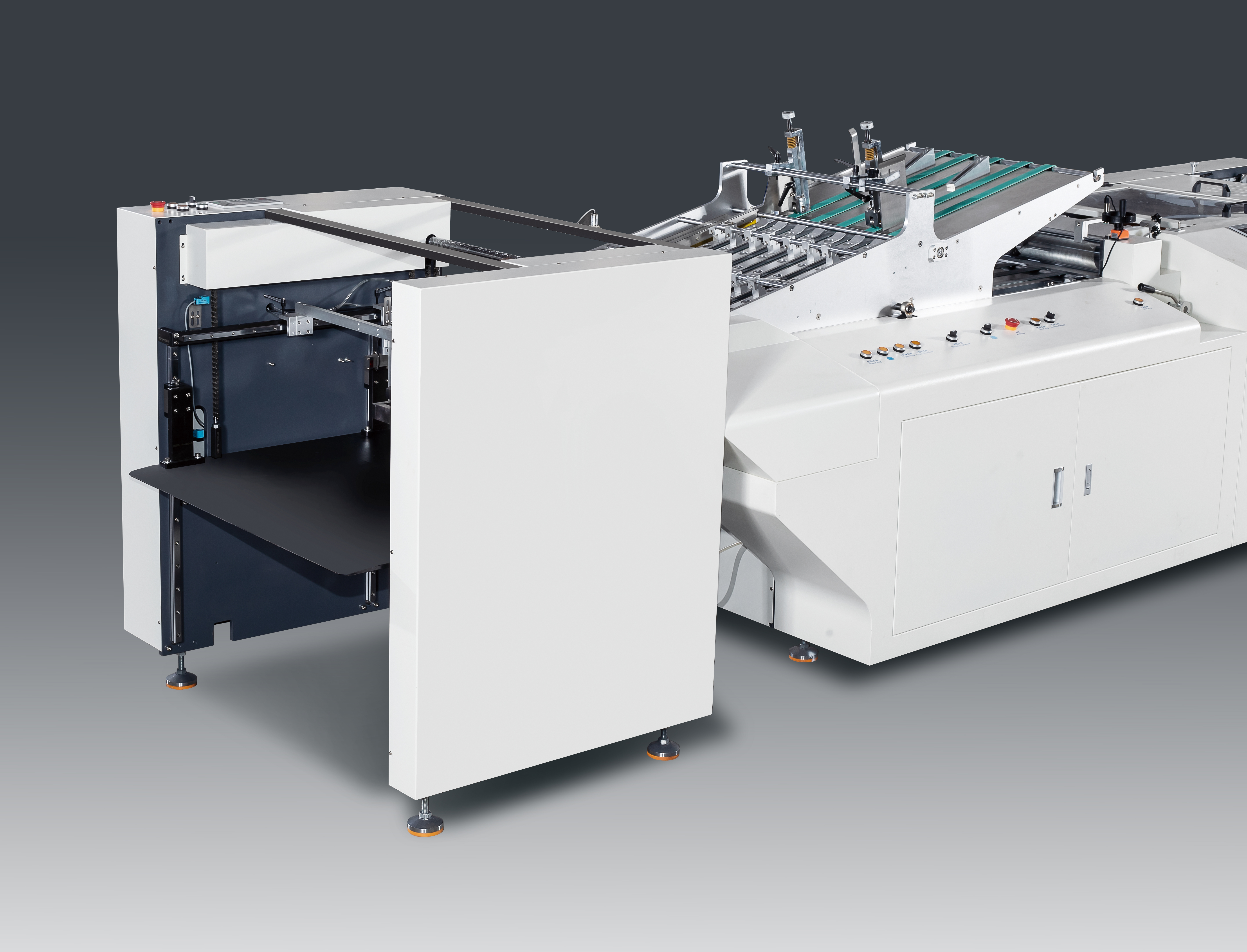

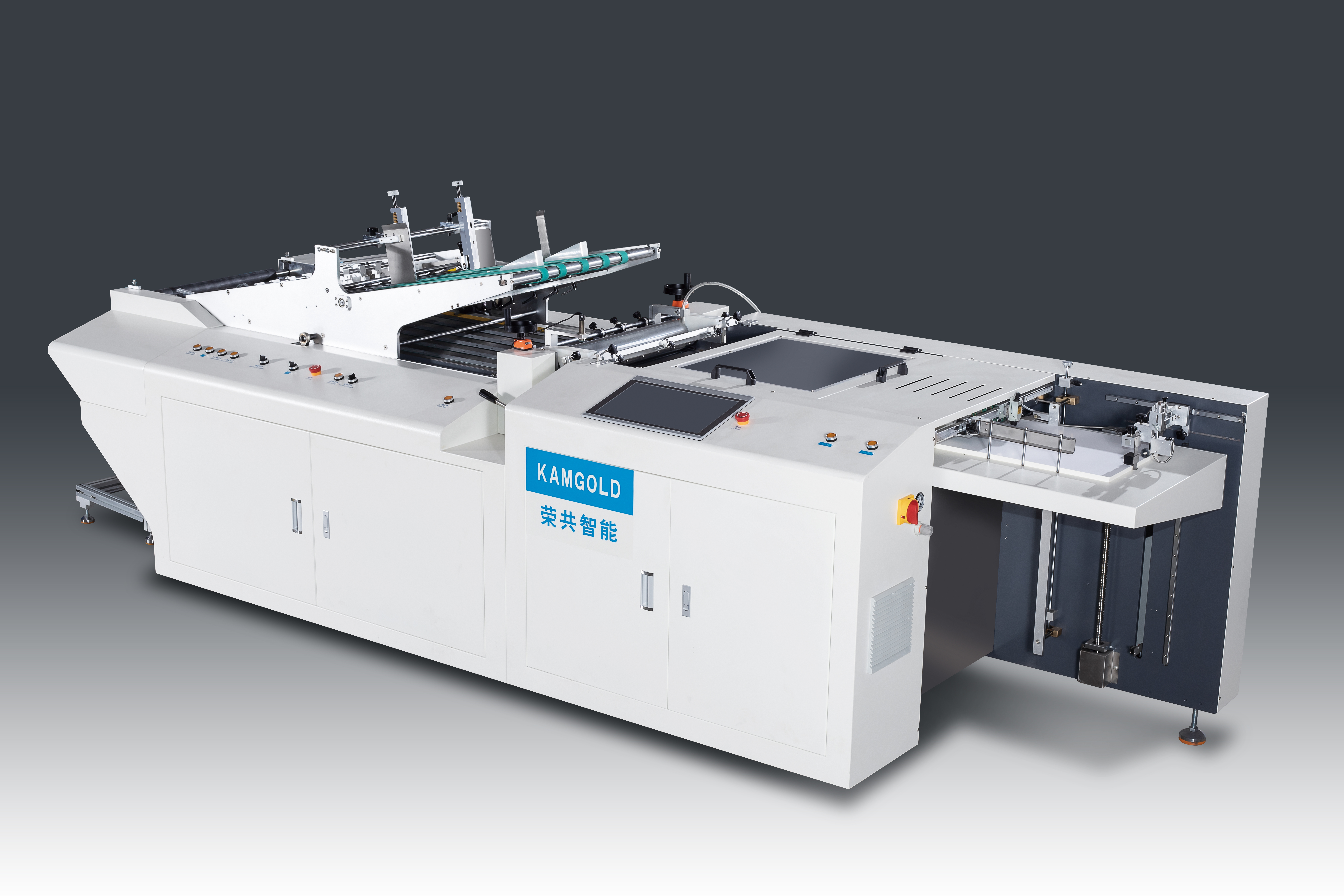

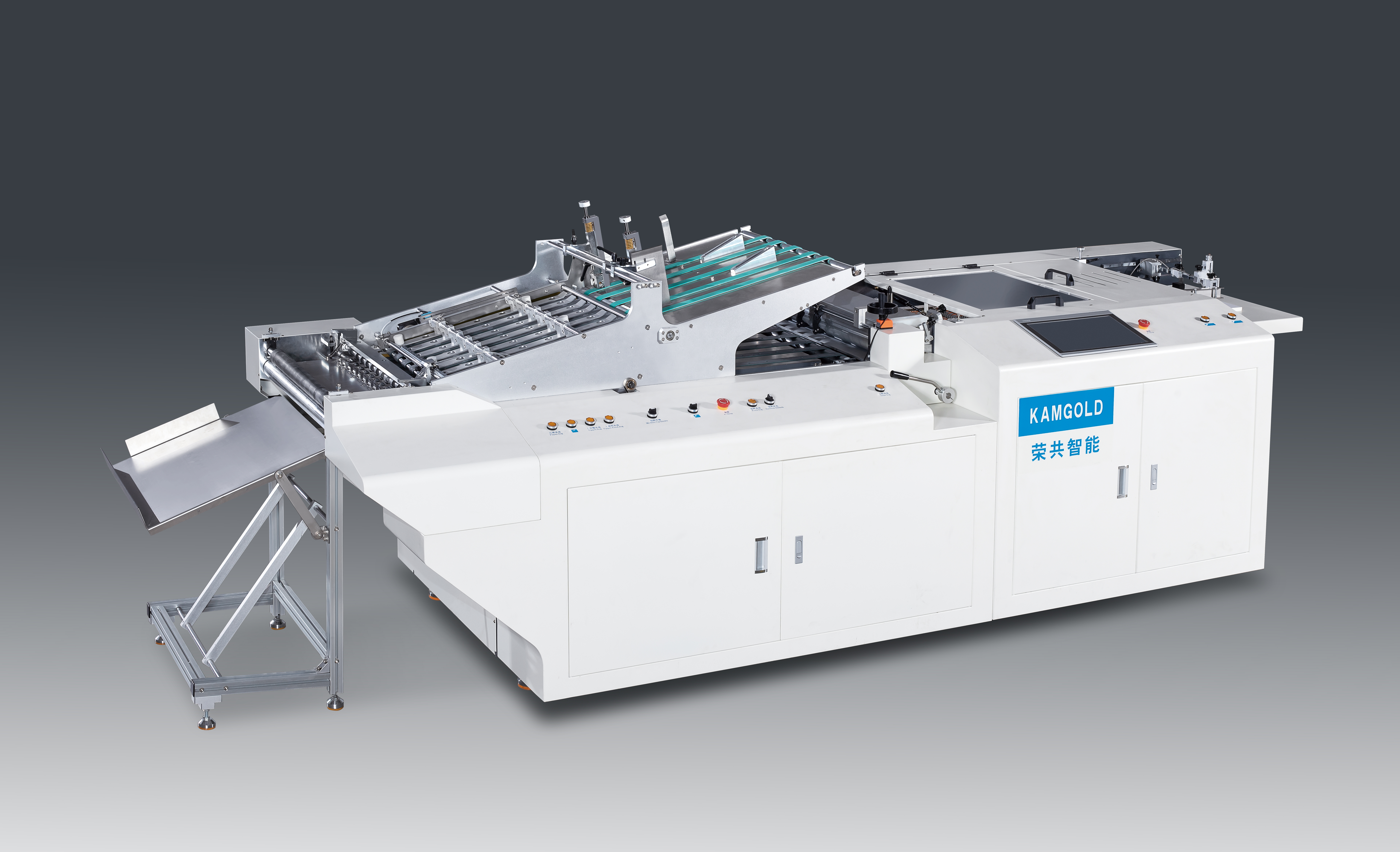

CS-500 Automatic paper lamination machine

Specially designed for paper jamming in the paper mounting process, it replaces manual paper mounting and adapts to various paper mounting processes. The top paper adopts an overlapping automatic continuous paper feeding system, and the bottom paper is equipped with a positioning conveyor table with a guide plate. The machine is compact and can be operated by one person. The electrical system adopts the full series configuration of Inovance, featuring fast speed, simple operation, and convenient adjustment. It is a new type of automation equipment for modern factories. It is widely used in the packaging of household appliances, food, wine, toys, home textiles, clothing tags (RFID), and other products.
Availability:
Quantity:
Inquire Add to Basket

Technical Parameters:

Max Speed:3000pcs/h

Max mounting size: 500mm*650mm

Min mounting size: 250mm*300mm

Single paper gram weight: 200-2000gsm

Paper thickness after mounting: 0.4-2.0mm

Mounting precision: ±0.5mm

Machine weight:2000kg

Machine size: 3850*1250*1350mm

Power: 10kw

Voltage: 3phase 380v 50Hz
